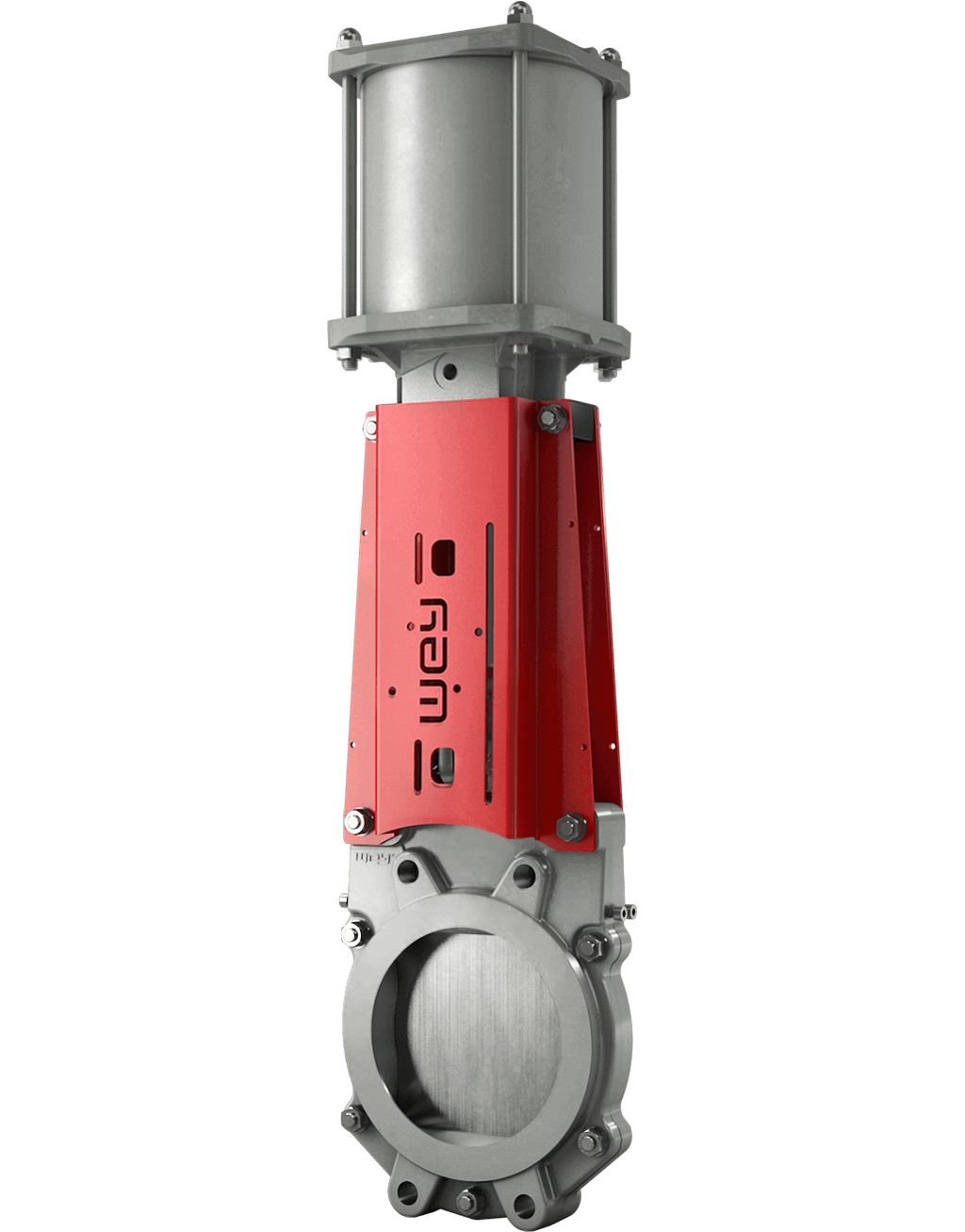

VS Series
The appeal of the VS series lies in its ingenious semi-lug design. The lightweight construction of this knife gate valve, which is available in stainless steel, makes it very cost-effective. Nonetheless, it gives our customers the highest level of reliability and durability in use. This is also because – like all Wey products – it can be repacked at any time and ensures zero leakage while in use.
50 – 900 mm
Nominal sizes
Stainless steel, Special material
Material
0 – 10 bar
Pressure rating
ANSI Class 150
Flange drilling
MSS-SP81
Face to face dimension
The robust metal yoke enables the optimal, simple assembly of mechanical or inductive limit switches. The yoke can be removed from one side. This makes it easier to access the mechanical parts.
A unique transverse seal, consisting of a transverse seal profile and packing compound, makes the body bubble-tight towards the atmosphere.
The transverse seal can be repacked at any time and under full pressure using the lateral packing screws.
With its optimized gate geometry, accumulated media is pushed out of the gate guide and flushed out into the bore by the increased flow.
In the closed end position, the gate is also mechanically supported.
Application areas
Biogas plants
e.g. Food waste, Household waste, Wood chips, Manure, Substrates, Other renewable resources …
Chemical and petrochemical industries
e.g. Viscous pastes, Granulates, Chemically contaminated waste water, Bitumen/tar …
Infrastructure
e.g. Waste water, Rainwater, Industrial water, Mixed water …
Food and beverage
e.g. Syrups, juices and beverages, Cereal, vegetable, mash, etc., Processed fruits, Cheese powder, Cocoa beans …
Pulp and paper industry
e.g. Pulp Stock (Low to high density), Liquor (black, white, green), Chemical solutions, bleaching agents, Recycling tissue …
Waste water treatment plants
e.g. Waste water, Raw water, Sludge, Digested sludge, Floating sludge …
Water treatment
e.g. Seawater, Saltwater …
Wey VS

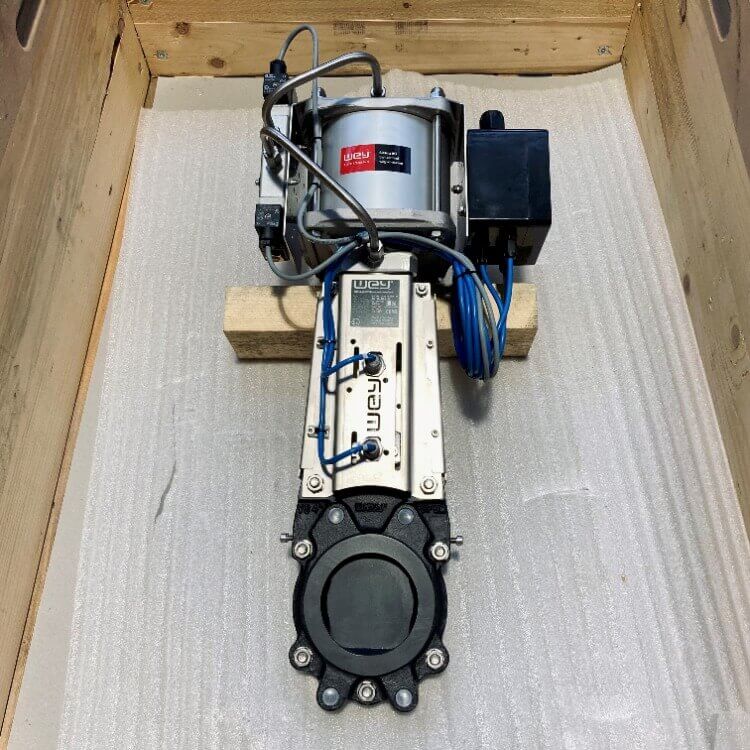

Wey VS in a customized version with PTFE coating, stainless steel pipework, solenoid valve and proximity switches.
MATERIAL OF CONSTRUCTION
| Part | Stainless steel | |
| Body | 316 Stainless steel | |
| Gate | 316 Stainless steel | |
| Seal | Aflas | |
| Topwork | Carbon steel | |
| Stem / Piston rod | 430F |
Other materials upon request
CORROSION PROTECTION
| Body | EKB powder coat | |
| Topwork | EKB powder coat | |
| Screws | Stainless steel | |
Handwheel
Manual lever
Bevel gear
Pneumatic cylinder
Hydraulic cylinder
Electric actuator
DOWNLOADS
Triple protection in demanding environments
Sometimes more is simply more. This Wey knife gate valve VSC DN 100 is protected against all types of harmful influences.

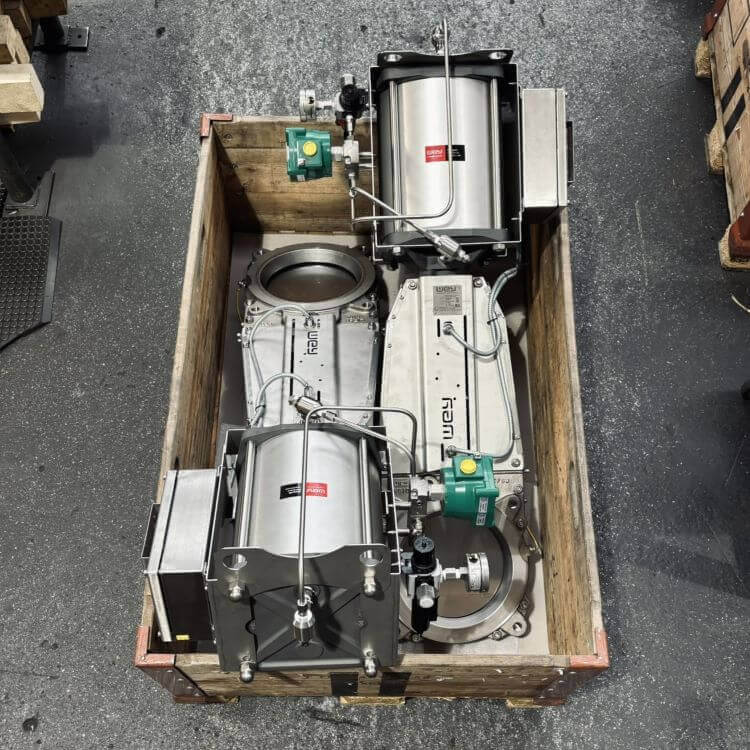

Complexity in every detail
At the request of our customer, these pneumatically operated knife gate valves VS were equipped with numerous specific attachments. The stainless steel valves are thus perfectly matched in every respect to their subsequent place of use in the plastics processing industry.
System changeover to knife gate valves
These knife gate valves VM DN 4″ were recently installed at a wastewater treatment plant in Ohio, USA. The existing scum system was aging and pumps and valves needed to be replaced. Our Wey knife gate valves were selected due to their resistance to deposition and solids. Compared to the previously installed plug valves, they are also much lighter and therefore easier to handle. The system was commissioned successfully in October.

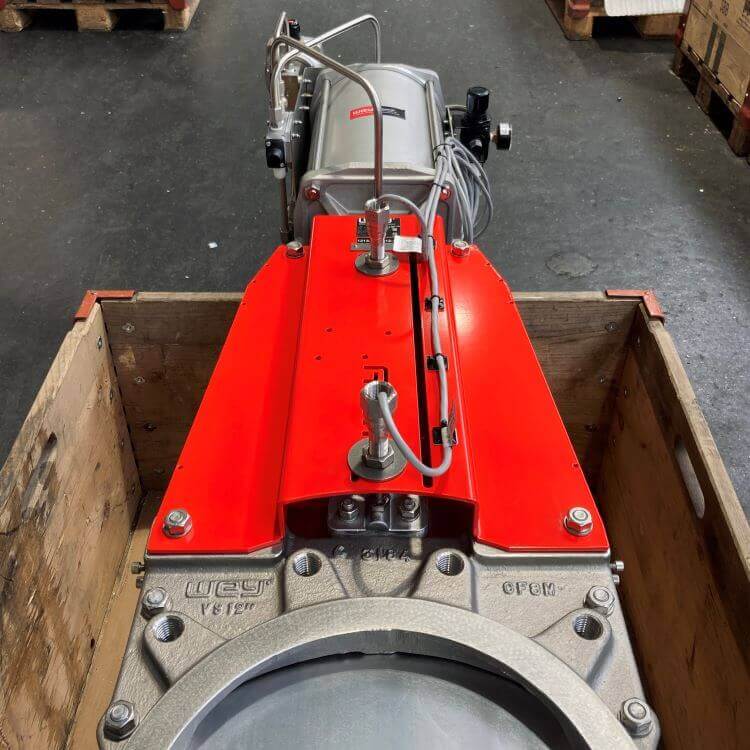

Abrasion protection in paper production
It’s not just the unusual color that catches the eye with this knife gate valve. The valve is equipped with various options to withstand demanding applications in the paper industry.
