TI3 Series
The TI3 model really is a unique design. It is designed for shut-off isolation of differential pressure level sensing. Unlike other transmitter isolating valves, which are only adapted from standard knife gate valves, the TI3 model was developed for the sole purpose of isolating the transmitter. The TI3 uses standard 1/2″ socket drive.
80 mm
Nominal sizes
Stainless steel
Material
0 – 10 bar
Pressure rating
ANSI Class 150
Flange drilling
MSS-SP81
Face to face dimension

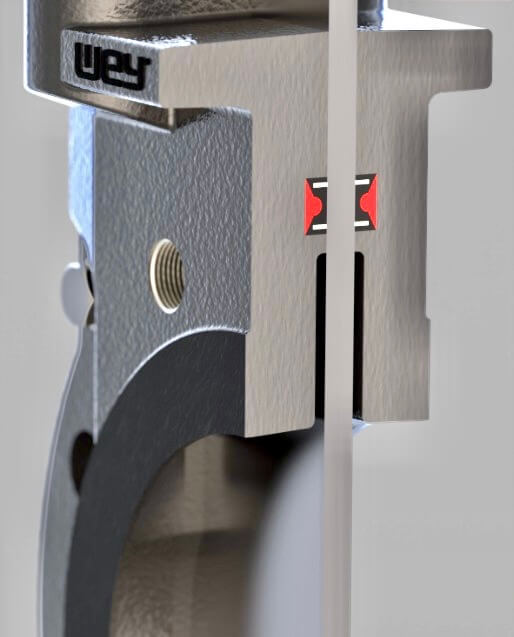

A unique transverse seal, consisting of a transverse seal profile and packing compound, makes the body bubble-tight towards the atmosphere.

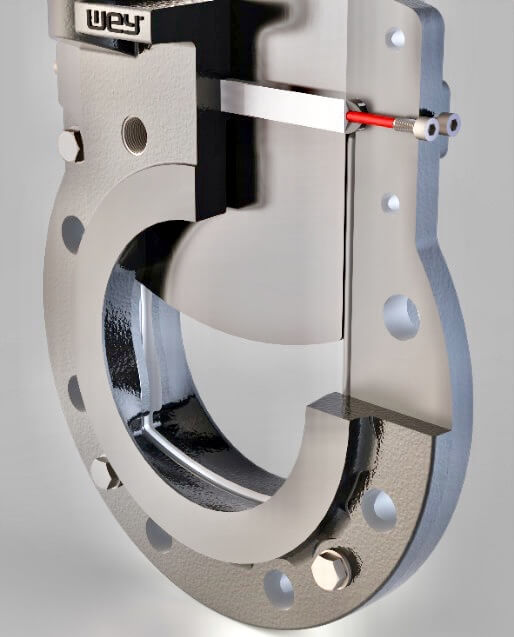

The transverse seal can be repacked at any time and under full pressure using the lateral packing screws.

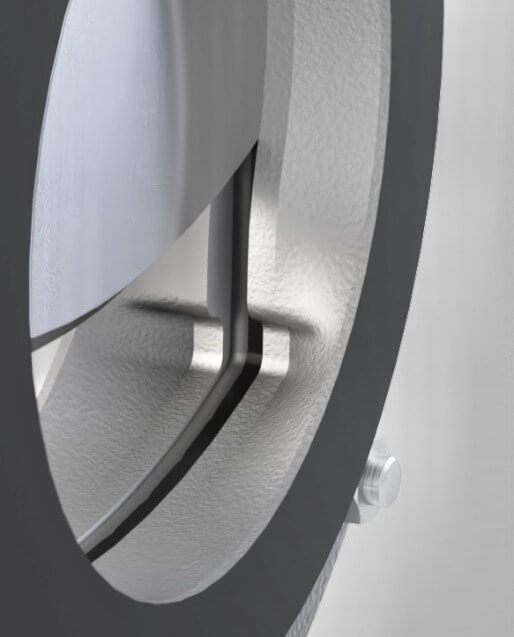

With its optimized gate geometry, accumulated media is pushed out of the gate guide and flushed out into the bore by the increased flow.

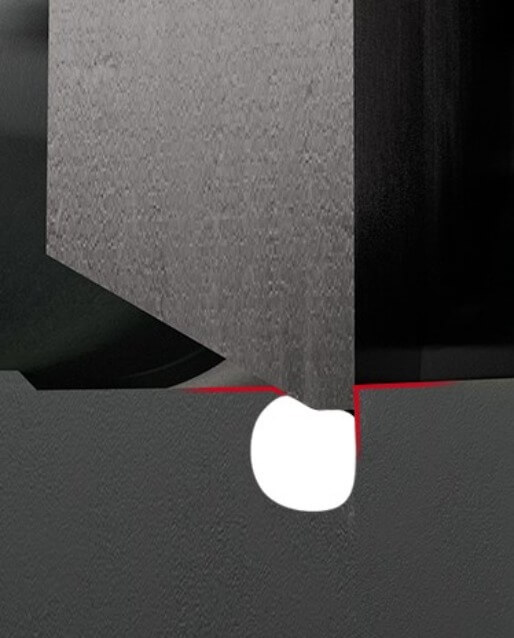

In the closed end position, the gate is also mechanically supported.
Application areas
Pulp and paper industry
e.g. Pulp Stock (Low to high density), Chemical solutions, bleaching agents …
MATERIAL OF CONSTRUCTION
| Part | Stainless steel | |
| Body | 316/317 Stainless steel | |
| Gate | 316/317 Stainless steel | |
| Seal | Aflas | |
| Topwork | 316/317 Stainless steel | |
| Stem / Piston rod | 430F |
Other materials upon request
