VL Series
With the optimized lug design of our VL Series, we give you the best of both worlds. It unites cost-saving design and the highest possible performance. Made of stainless steel as standard, it is often used in corrosive applications and, thanks to its 100% bidirectional bubble-tight shut off, offers the best possible customer confidence and satisfaction.
2 – 36 inch
Nominal sizes
Stainless steel, Special material
Material
0 – 150 psi
Pressure rating
ANSI Class 150
Flange drilling
MSS-SP81
Face to face dimension

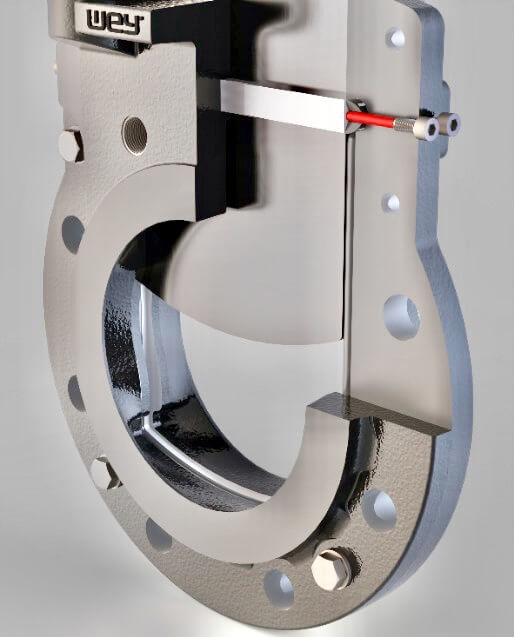

A unique transverse seal, consisting of a transverse seal profile and packing compound, makes the body bubble-tight towards the atmosphere.
The transverse seal can be repacked at any time and under full pressure using the lateral packing screws.

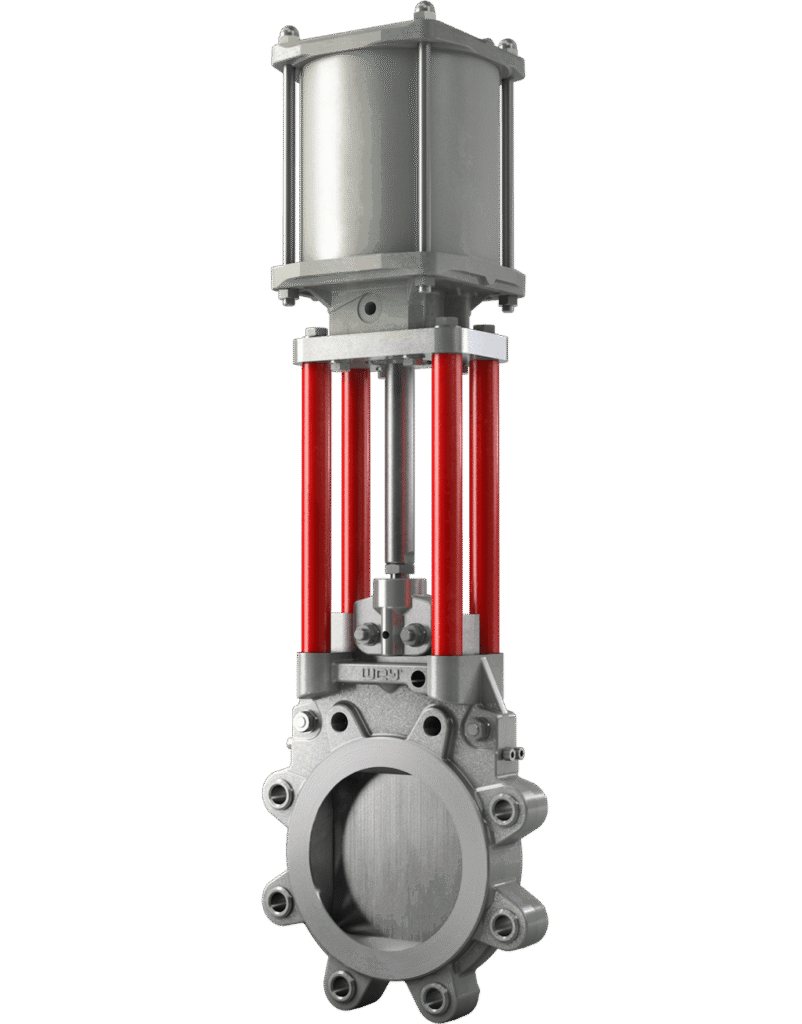

Robust 4-post topwork for maximum load and a wide variety of actuator types.
With its optimized gate geometry, accumulated media is pushed out of the gate guide and flushed out into the bore by the increased flow.
In the closed end position, the gate is also mechanically supported.
MATERIAL OF CONSTRUCTION
| Part | Stainless steel | |
| Body | 316 Stainless steel | |
| Gate | 316 Stainless steel | |
| Seal | Aflas | |
| Topwork | Carbon steel | |
| Stem / Piston rod | 430F |
Other materials upon request
CORROSION PROTECTION
| Topwork | Two-layer wet coating | |
| Screws | Stainless steel | |
Handwheel
Bevel gear
Pneumatic cylinder
Hydraulic cylinder
Electric actuator
